V Fender Easy Installation Low Maintenance High Energy Absorption
Description

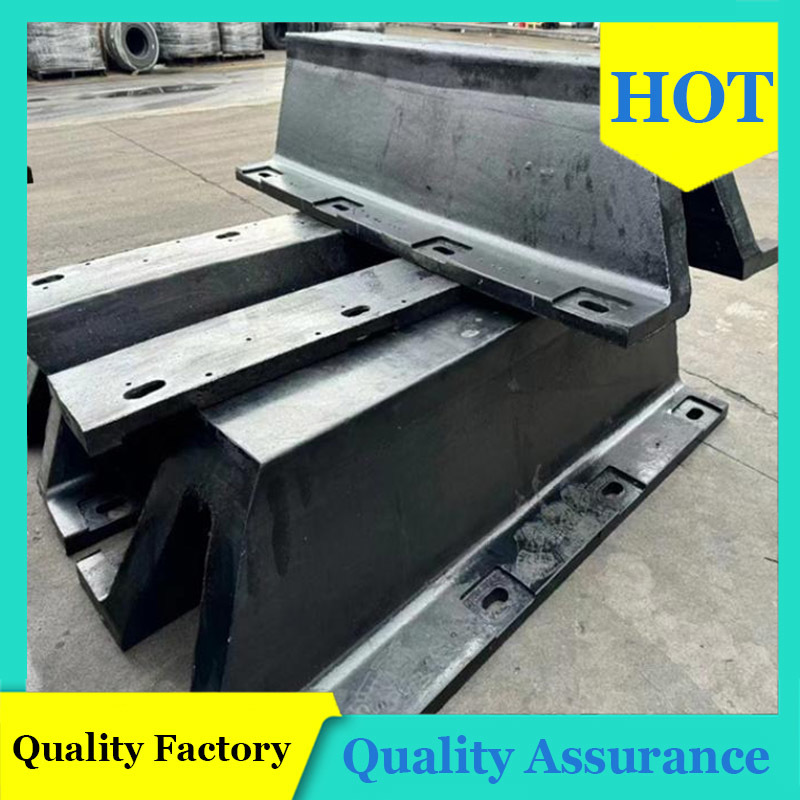

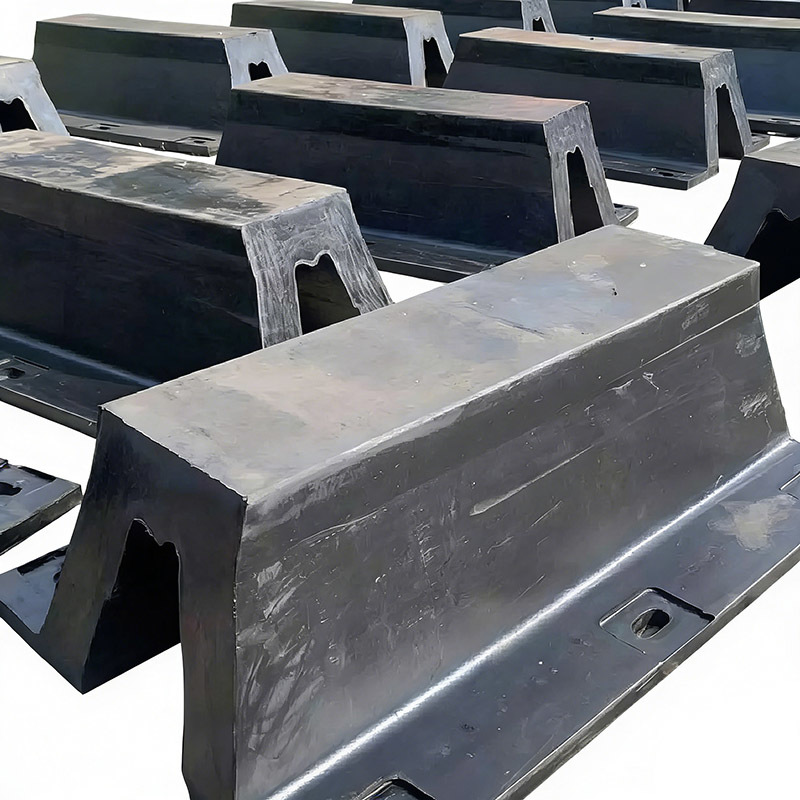

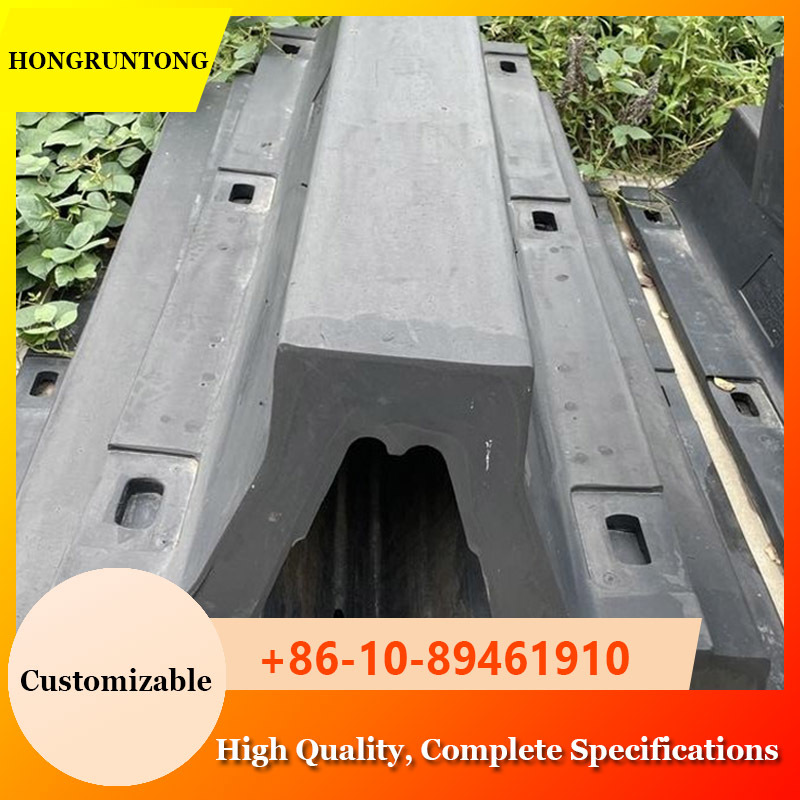

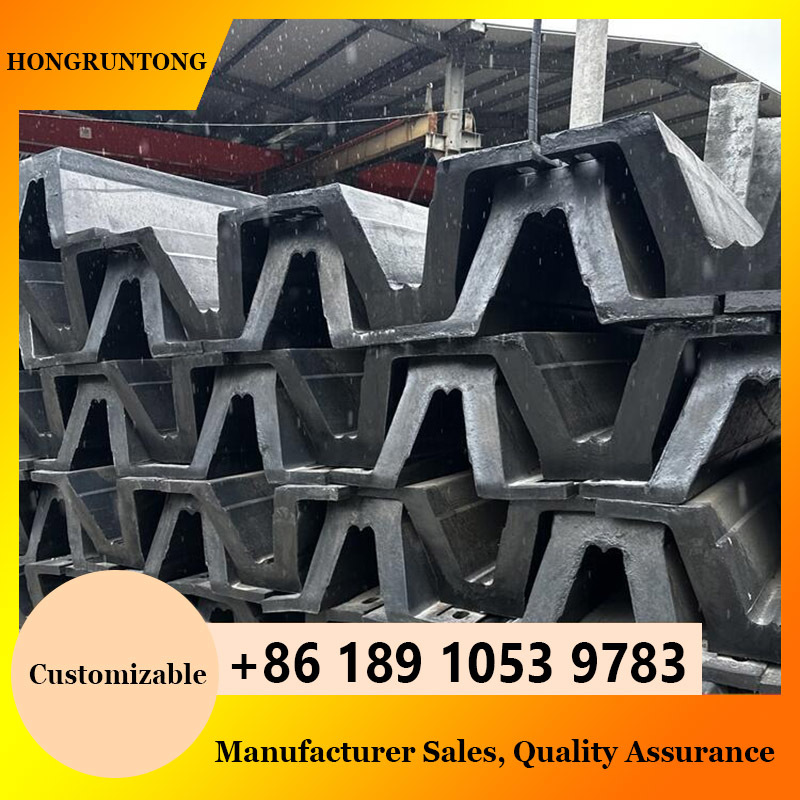

V Type Fender is a premium marine protection system designed for superior impact absorption and vessel safety during berthing operations. Manufactured from high-quality marine-grade rubber, it delivers exceptional compression resistance and long-term durability. The V-shaped profile enhances energy distribution, reducing docking stress and minimizing structural damage to both ships and port infrastructure. This solution supports safer operations and extended service life for marine facilities.
Case Study
A busy commercial port handling bulk carriers up to 25,000 DWT experienced frequent docking damage and high maintenance expenses due to outdated protection systems. After installing V Type Fender units along the berthing line, impact forces during vessel contact were reduced by approximately 38%. Structural maintenance costs declined significantly within the first year, and docking operations became smoother and more efficient. Port operators reported improved safety and reduced downtime, demonstrating the effectiveness of the fender system in high-traffic marine environments.
Specifications
| Product Name |
V Type Fender |
| Material |
High Performance Natural Rubber |
| Standard |
HGT2866-2016, PIANC2002 |
| Shape |
V Type |
| Feature |
Easy Replacement Firm for Installation |
| Part |
Dock Bumper |
| Usage |
Dock Port Wharf Boat Ship |
| Surface |
Matte/Smooth |
| Packing |
Pallet or Wooden Case |
| Keywords |
Arch Rubber Fender/V Rubber Fender |
| Model |
A |
D |
E |
F |
H |
K |
M |
R x Q |
Lmax |
| V Type |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| HM-VTF150 |
50 |
240 |
326 |
98 |
150 |
16 - 20 |
108 |
20 × 40 |
3000 |
| HM-VTF200 |
50 |
320 |
422 |
130 |
200 |
18 - 25 |
142 |
25 × 50 |
3000 |
| HM-VTF250 |
62.5 |
400 |
500 |
163 |
250 |
20 - 30 |
164 |
28 × 56 |
3500 |
| HM-VTF300 |
75 |
480 |
595 |
195 |
300 |
25 - 32 |
194 |
28 × 56 |
3500 |
| HM-VTF400 |
100 |
640 |
808 |
260 |
400 |
25 - 32 |
266 |
35 × 70 |
3500 |
| HM-VTF500 |
125 |
800 |
981 |
325 |
500 |
25 - 32 |
318 |
42 × 84 |
3500 |
| HM-VTF600 |
150 |
960 |
1160 |
390 |
600 |
28 - 40 |
373 |
48 × 96 |
3000 |
| HM-VTF800 |
200 |
1300 |
1550 |
520 |
800 |
41 - 50 |
499 |
54 × 108 |
3000 |
| HM-VTF1000 |
250 |
1550 |
1850 |
650 |
1000 |
50 - 62 |
580 |
54 × 108 |
3000 |
| *Note: Other sizes can be customized according to the requirements. |
Features
High Energy Absorption and Impact Mitigation
V Type Fender is engineered to dissipate docking forces efficiently, protecting vessels and port structures from direct impact. The V-shaped design distributes energy evenly, reducing localized stress and extending the lifespan of marine infrastructure. This feature is particularly valuable in ports with frequent berthing operations, where robust protection is essential for operational safety.
Marine Grade Durability and Weather Resistance
Constructed from premium rubber materials, the fender offers excellent resistance to seawater corrosion, UV exposure, and mechanical wear. These properties ensure reliable performance in harsh marine environments with minimal maintenance requirements. The product’s durability supports long-term operational efficiency and reduces lifecycle costs.
Compression Recovery and Structural Stability
V Type Fender maintains performance under repeated compression cycles, providing consistent protection during high-frequency docking operations. Its strong elastic recovery restores shape and functionality after impact, ensuring ongoing operational reliability. This characteristic enhances safety and reduces the risk of material fatigue over time.
Cost Effective and Low Maintenance Design
The fender system is built for durability and ease of use, requiring minimal maintenance throughout its service life. Reduced repair and replacement needs lower operational expenses and support sustainable infrastructure management. This efficiency makes it a practical investment for ports seeking long-term value and operational stability.
Applications
Port and Harbor Protection
V Type Fender is widely deployed in commercial ports to safeguard docking areas from vessel impact. It enhances operational safety and reduces structural damage, supporting efficient maritime logistics and infrastructure longevity. The product is suitable for ports handling vessels of diverse sizes and operational requirements.
Shipyards and Dry Dock Facilities
In ship maintenance and repair environments, the fender provides reliable protection during vessel movement and handling operations. Its shock-absorbing properties minimize structural stress and enhance workplace safety, improving operational efficiency in demanding marine settings.
Offshore and Marine Engineering Projects
The system supports offshore operations by providing impact protection and structural stability in marine engineering applications. Its durability and performance make it suitable for diverse maritime projects, including infrastructure development and vessel support systems.
Why Choose Hongruntong Marine
Engineering Expertise and Industry Leadership
Hongruntong Marine delivers advanced marine protection solutions backed by extensive industry experience. Our engineering capabilities ensure products meet international standards and operational requirements, providing customers with reliable and high-performance solutions.
Premium Materials and Precision Manufacturing
We utilize marine-grade rubber and advanced manufacturing techniques to produce durable and efficient fender systems. This commitment to quality enhances product longevity and operational effectiveness, supporting long-term infrastructure investment and operational safety.
Customized Solutions for Diverse Marine Applications
Every port and vessel operation has unique requirements. We offer tailored fender designs to optimize performance and compatibility with existing infrastructure. Customized solutions ensure maximum operational value and address specific project needs.
Comprehensive Customer Support and Technical Assistance
From product selection to installation guidance and after-sales service, we provide end-to-end support to ensure customer satisfaction. Our professional team is dedicated to delivering reliable solutions and long-term value, building strong partnerships with clients worldwide.
FAQ
1. What materials are used in V Type Fender?
V Type Fender is manufactured from high-quality marine rubber with excellent compression resistance and durability. These materials ensure reliable performance in harsh marine environments and long service life, reducing maintenance requirements and operational costs.
2. Can the fender be customized for different port requirements?
Yes, we offer customized solutions to meet specific operational needs. Dimensions, load capacity, and installation configurations can be tailored to suit diverse marine applications, ensuring optimal performance and compatibility with existing infrastructure.
3. How does V Type Fender reduce docking damage?
The V-shaped design absorbs and distributes impact energy, minimizing direct force on vessels and port structures. This reduces structural stress and enhances operational safety, protecting marine infrastructure and improving berthing efficiency.
4. What maintenance is required?
V Type Fender requires minimal maintenance due to its durable construction. Periodic inspections and cleaning are recommended to ensure optimal performance and longevity, supporting cost-effective operational practices and long-term reliability.
5. Is the product suitable for extreme weather conditions?
Yes, the fender is designed to withstand UV exposure, seawater corrosion, and temperature variations. Its robust materials ensure reliable performance in diverse marine environments, providing consistent protection and operational stability.
